  Home > Products > PIHER

SMD Potentiometers

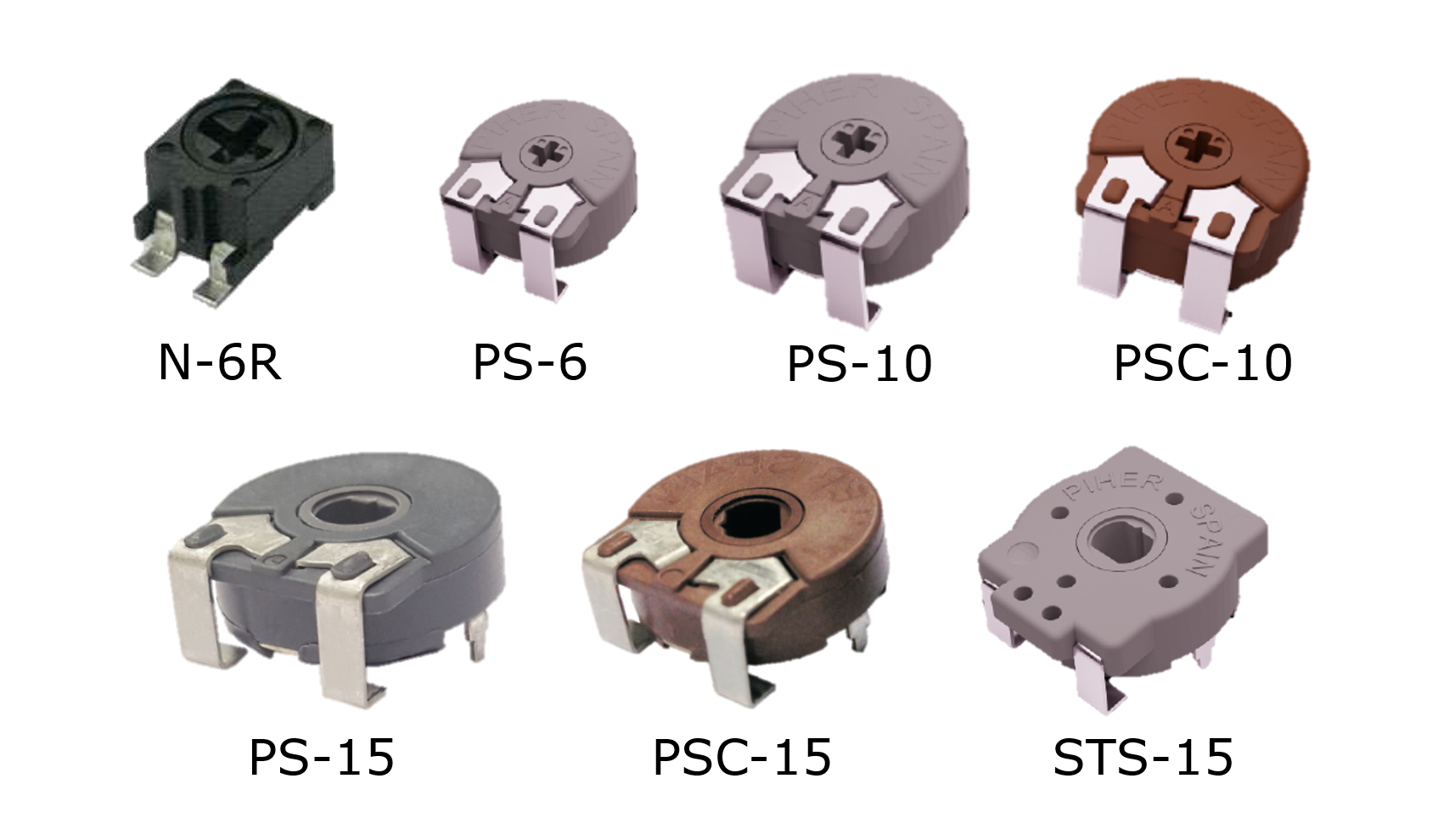

Series Size Electrical Angle Power Rating (W) Resistance Range (Ohm) Temperature Range Rotational Life (Max)
N-6R 6 mm 245º +/- 25º 0.1 (50ºC) 250 to 500k -25ºC to +70ºC 10,000
PS-6 6 mm 200º +/- 20º 0.1 (50ºC) 1k to 1M -40ºC to +85ºC 10,000
PS-10 10 mm 220º +/- 20º 0.15 (50ºC) 1k to 1M -40ºC to +85ºC 10,000
PSC-10 10 mm 220º +/- 20º 0.33 (70ºC) 100 to 5M -40ºC to +90ºC 10,000
PS-15 15 mm 240º +/- 20º 0.25 (50ºC) 1k to 1M -40ºC to +85ºC 100,000
PSC-15 15 mm 240º +/- 20º 0.5 (70ºC) 100 to 5M -40ºC to +90ºC 10,000
STS-15 15 mm 333º 0.25 (50ºC) 1k to 1M -40ºC to +85ºC 100,000
Download
  N-6R_Potentiometer 544.6 K  2023-08-10
  PS-6_Potentiometer 1.8 M  2023-08-10
  PS-10_PSC-10_Potentiometer 848.2 K  2023-08-10
  PS-15_PSC-15_Potentiometer 1.2 M  2023-08-10
  STS-15_Potentiometer 1.6 M  2023-08-10
