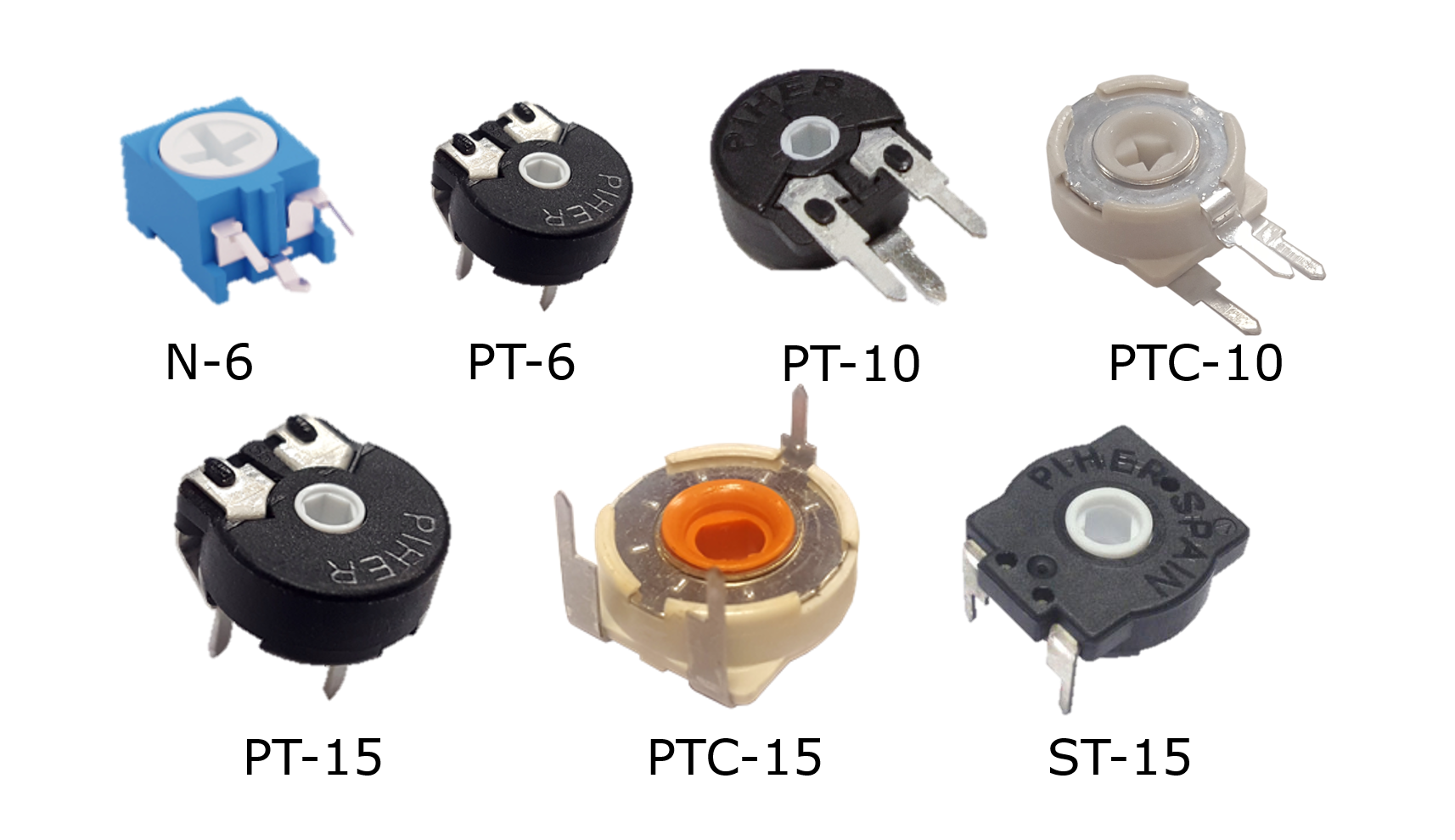

Through-Hole Potentiometers


Series	Size	Electrical Angle	Power Rating (W)	Resistance Range (Ohm)	Temperature Range	Rotational Life (Max)
N-6	6 mm	245º +/- 25º	0.1 (50ºC)	100 to 1M	-25ºC to +70ºC	100
PT-6	6 mm	200º +/- 20º	0.1 (50ºC)	220 to 5M	-25ºC to +70ºC	10,000
PT-10	10 mm	220º +/- 20º	0.15 (50ºC)	100 to 5M	-25ºC to +70ºC	100,000
PTC-10	10 mm	220º +/- 20º	0.33 (70ºC)	100 to 5M	-40ºC to +90ºC	10,000
PT-15	15 mm	240º +/- 20º	0.25 (50ºC)	100 to 5M	-25ºC to +70ºC	100,000
PTC-15	15 mm	240º +/- 20º	0.5 (70ºC)	100 to 5M	-40ºC to +90ºC	10,000
ST-15	15 mm	333º	0.25 (50ºC)	1k to 100k	-25ºC to +70ºC	200,000

Download

	N-6_Potentiometer	875.1 K	2023-08-10
	PT-6_Potentiometer	1013.5 K	2023-08-10
	PT-10_PTC-10_Potentiometer	1.5 M	2023-08-10
	PT-15_PTC-15_Potentiometer	766.7 K	2023-08-10
	ST-15_Potentiometer	1.9 M	2023-08-10

- PIHER -

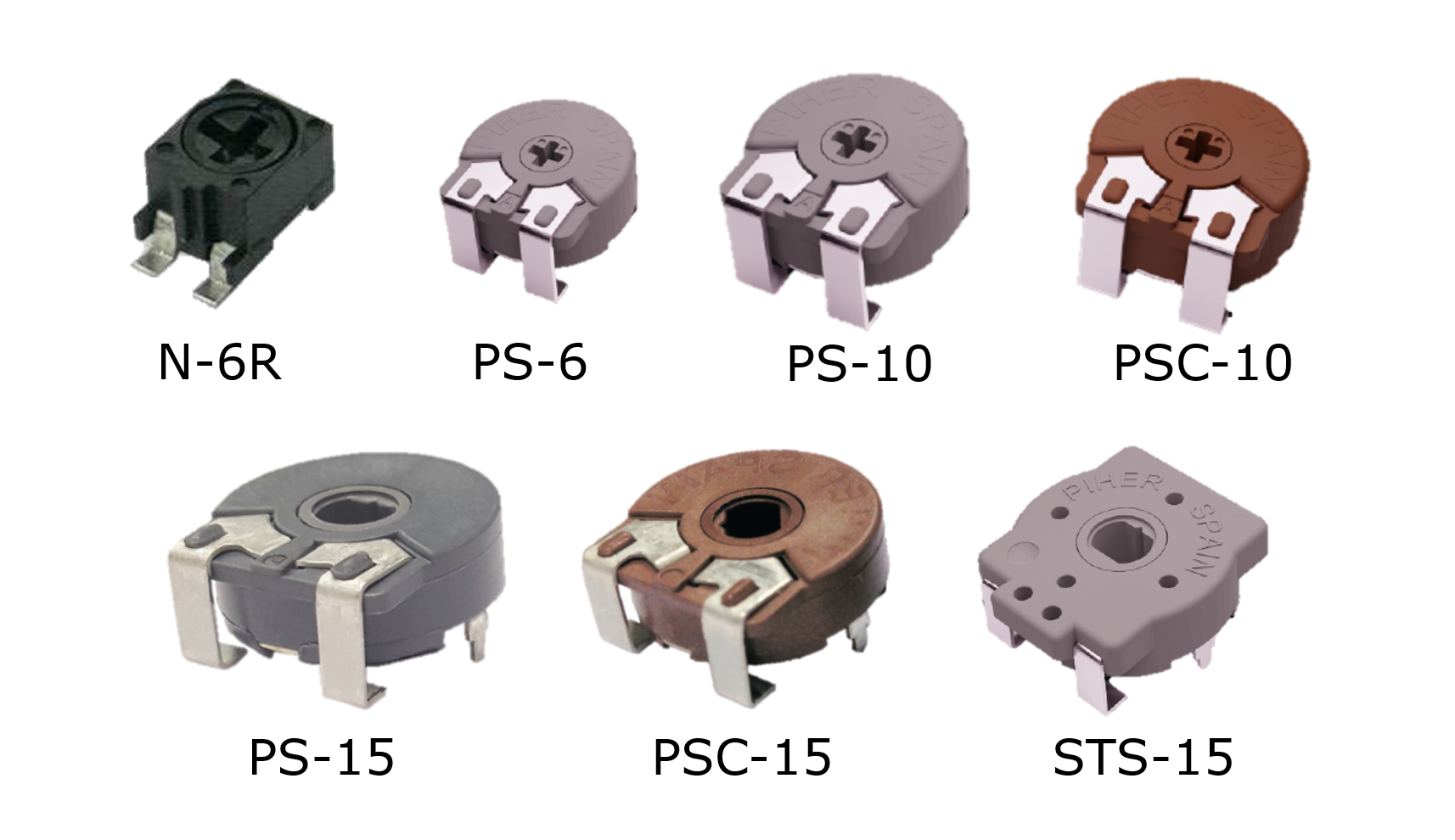

SMD Potentiometers
PIHER Potentiometers

Low Profile Position Sensor / Potentiometer
PIHER Potentiometers

End-of-Shaft Rotary Position Sensors
PIHER Position Sensors

Through-Shaft Rotary Position Sensors
PIHER Position Sensors

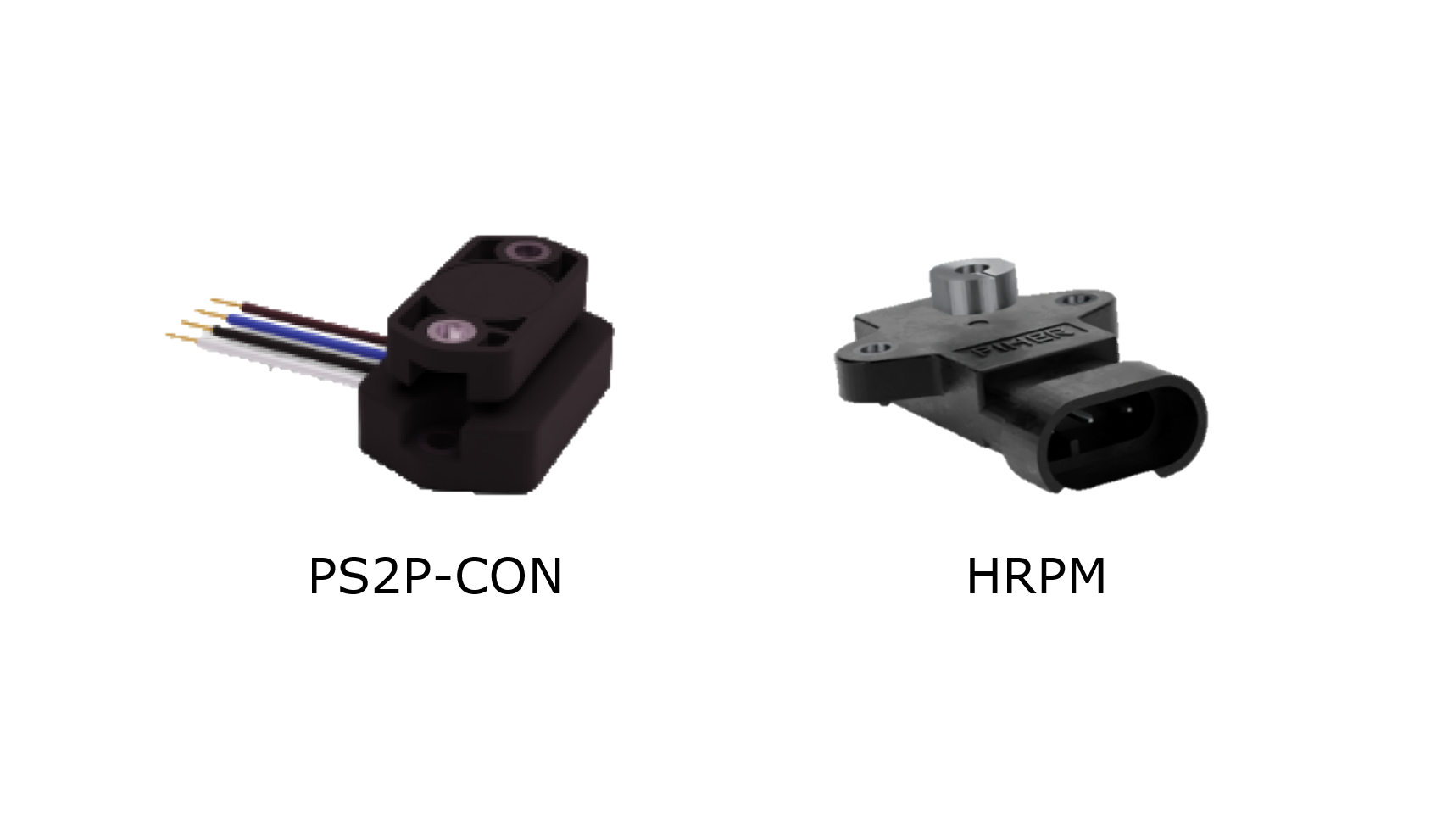

Touchless Rotary Position Sensors
PIHER Position Sensors

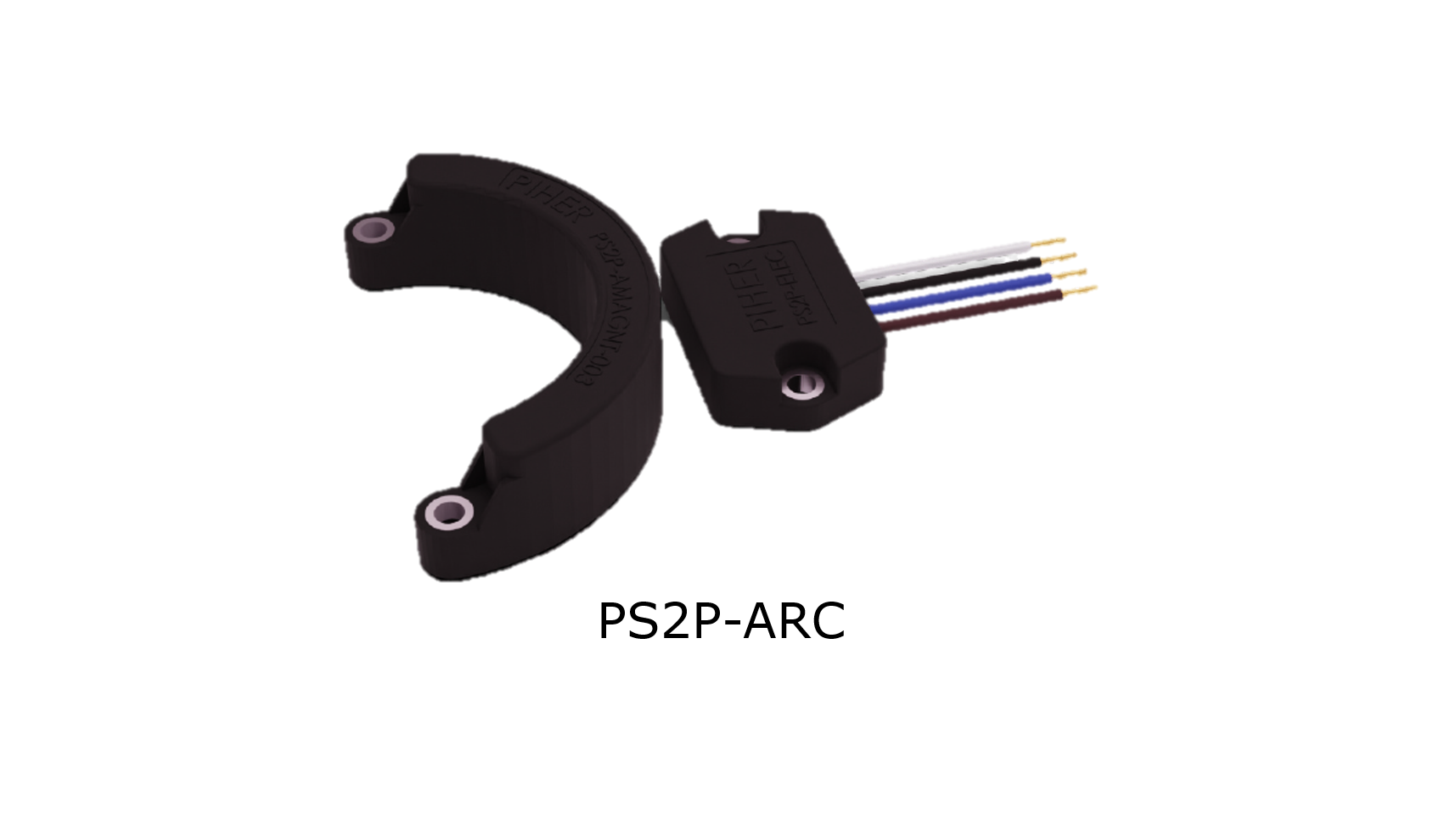

ARC Position Sensors
